Dome Thermal Camera M6 Series

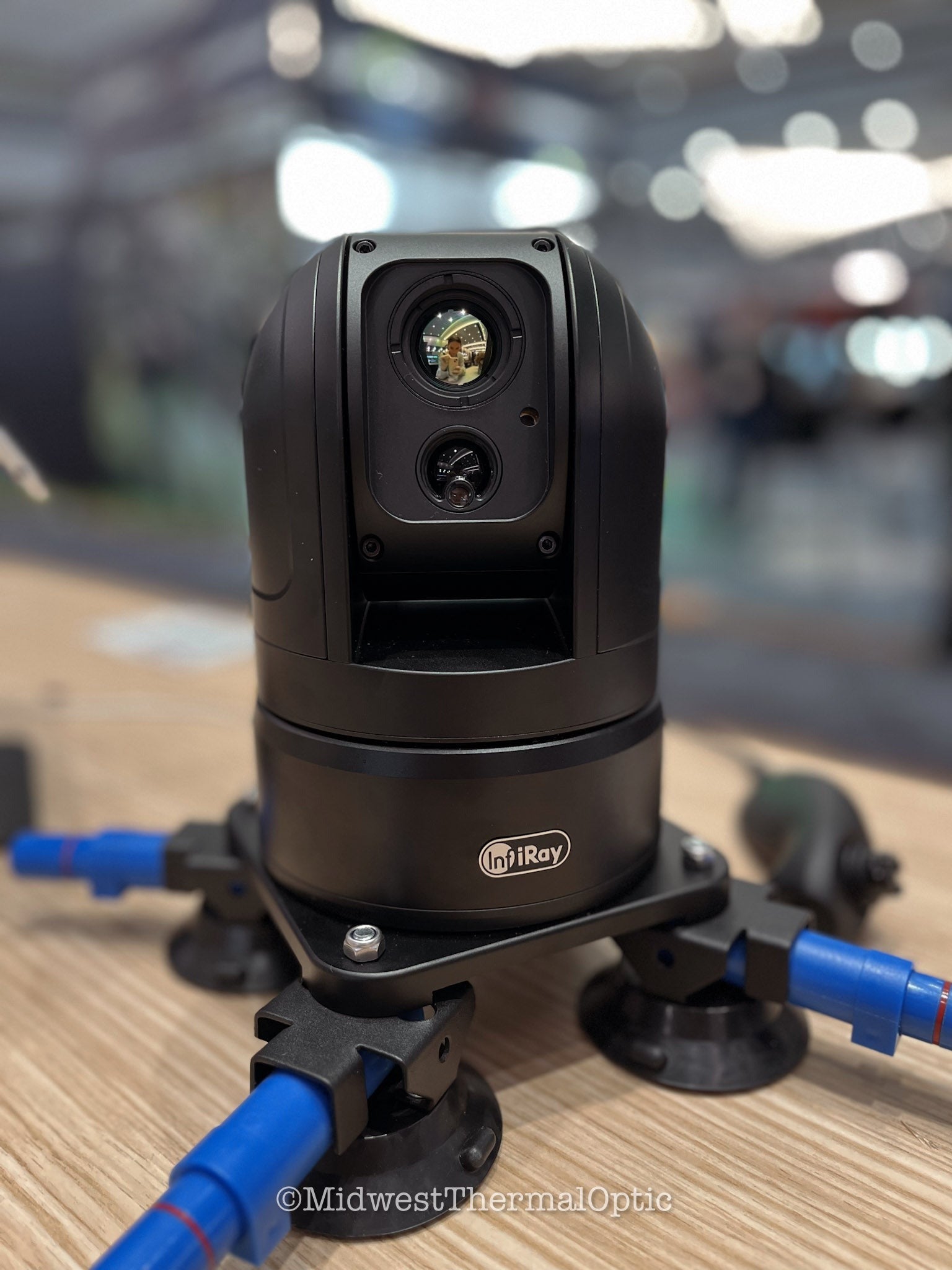

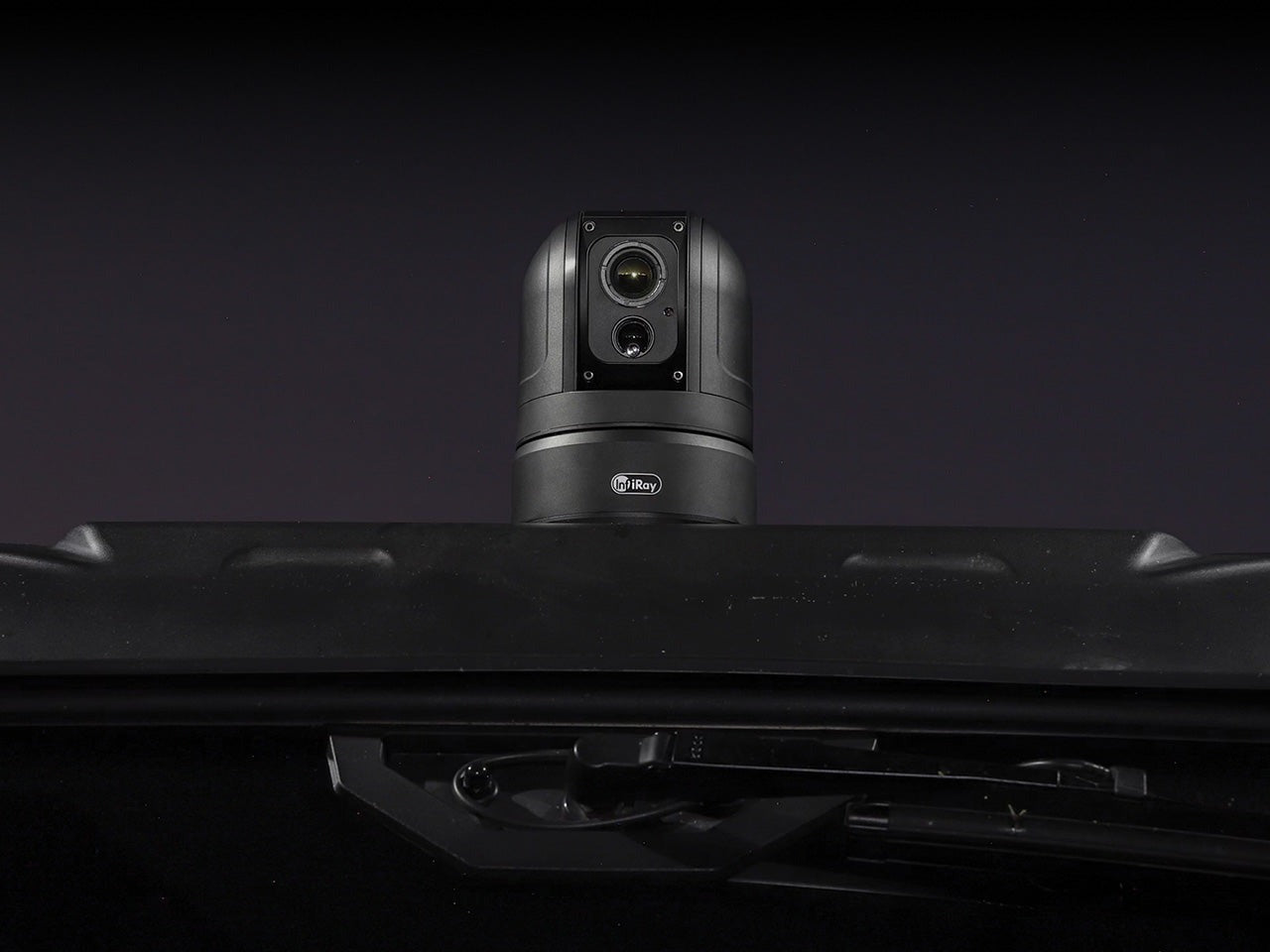

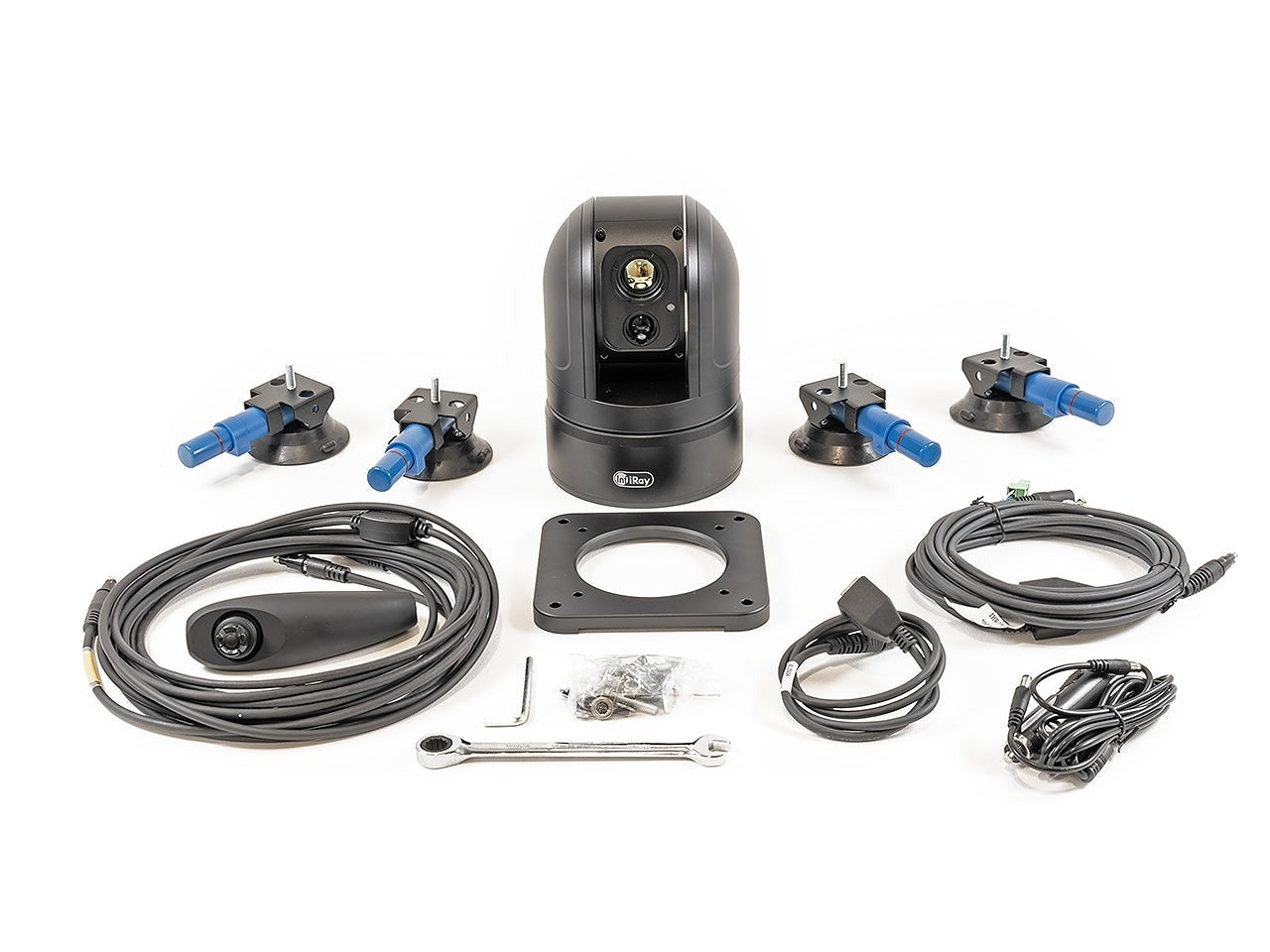

M6 Series is a vehicle mounted PTZ thermal camera system developed for outdoor hunting, search, and rescue. It can rapidly be installed on the vehicle roof by a pressurized suction cup or securely mounted on a rack.
Â
Higher Image Quality
640*512 high-resolution and 50Hz no-stuttering infrared sensor, the image is clear, smooth, and delicate.
Â

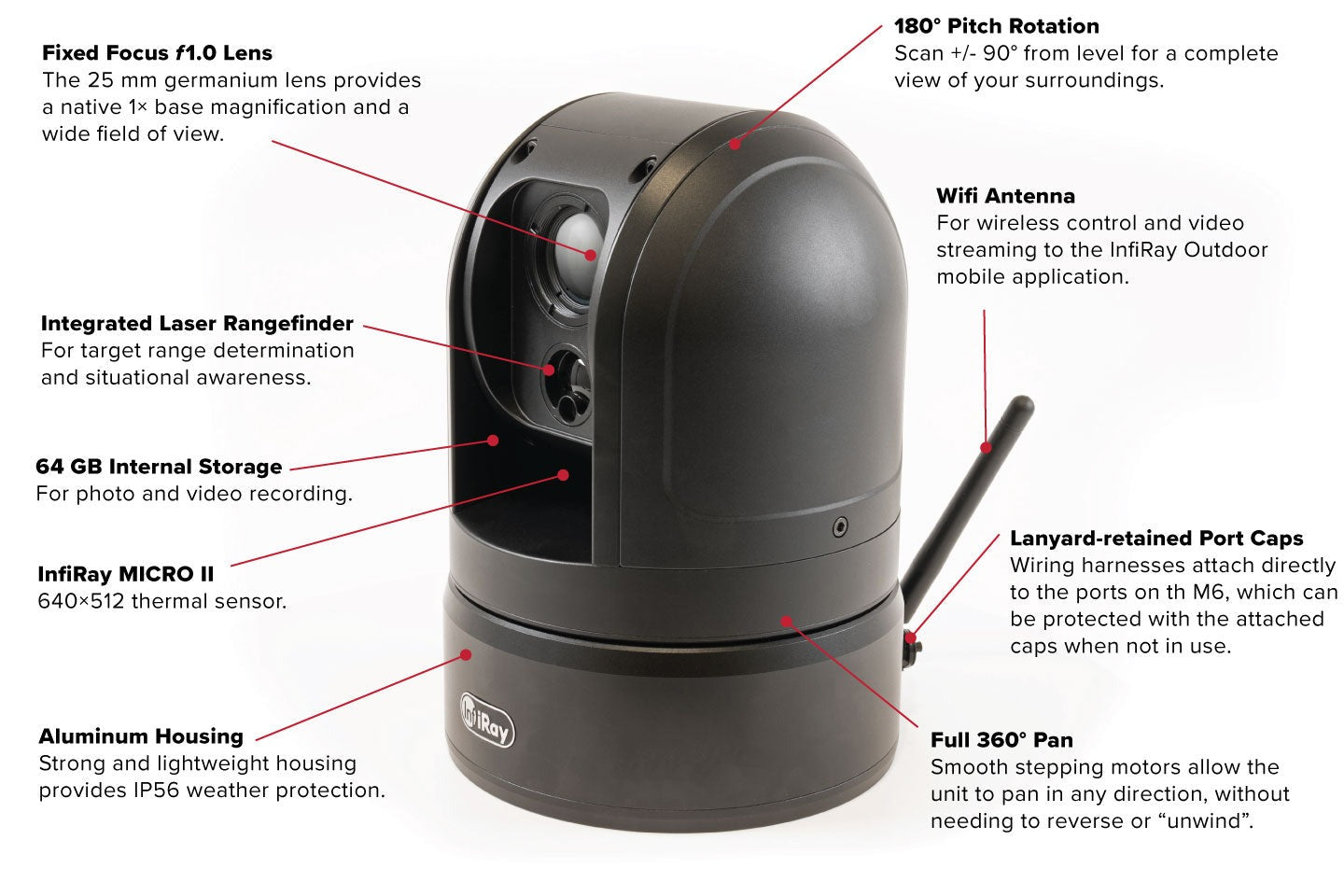

360° Continues Rotation
360° continuous rotation in horizontal and 90°~-90° in pitch. Directly drive by brushless motor, with low noise and stable performance.
Â

Multiple Output Interface
Adopt standard monitoring input and output interface, support analog video output, H.264 network output, PELCO-D control protocol. It can be easily connected to home or land monitoring system.
Â

Extreme Temperature Resistance
IP56 Rating makes it suitable for extreme weather.  It has a wide operating temperature range (between -20~60℃) ,can suit any conditions. Equipped with a IP69K Rating Waterproof design to protect against dust and rain.
Â

Â
| Modle | M6T25 |
| Detector  Specifications | |
| Type | Vox |
| Resolution,  pixels | 640×512 |
| Pixel size,μm | 12 |
| Spectrum  Range,μm | 8~14 |
| NETD,mk | ≤50 |
| Frame rate, Â Hz | 50 |
| Optical  Specification | |
| Objective  Lens,mm | 25 |
| Field of  View(H×V),° | 17.5×14.0 |
| Imaging Range | ≥3 |
| Digital  Zoom,x | 1 / 2 / 4 |
| Image  Processing | Digital filter noise  reduction / digital detail enhancement |
| Camera | |
| Azimuth Range | 360° continuous  rotation |
| Pitch Range | 90°~+90° |
| Physical  Specification | |
| Wi-Fi/APP | Support (InfiRay  outdoor) |
| IP Rating | IP56 |
| Operating  Tempeture,℃ | -20~+60 |
| Weight,g | 2000 |
| Dimension,mm | φ133mm, 188mm high |
| Functions | |
| Laser Pointer | Yes |
| Laser  Rangefinder | Yes |
