Complete RIX K3 (384) Thermal Monocular Helmet Kit

Complete RIX K3 (384) Thermal Monocular Helmet Kit

$279.80 USD
$1,399.00 USD $279.80 USD
Translation missing: en.products.product.on_sale Translation missing: en.products.product.sold_out
Translation missing: en.products.product.shipping_policy_html
RIX K2 or K3 Helmet Mounting Bracket (Select Eye)

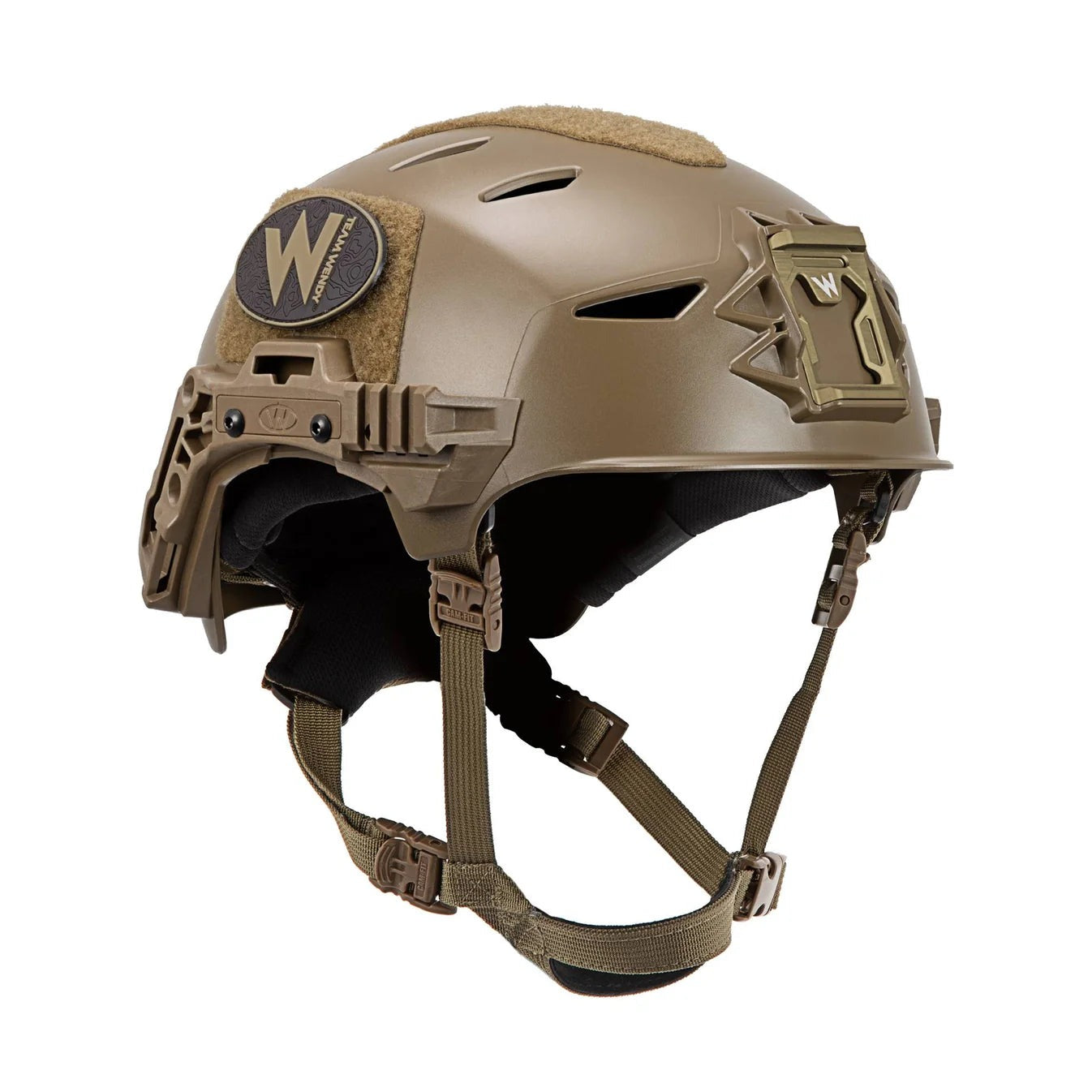

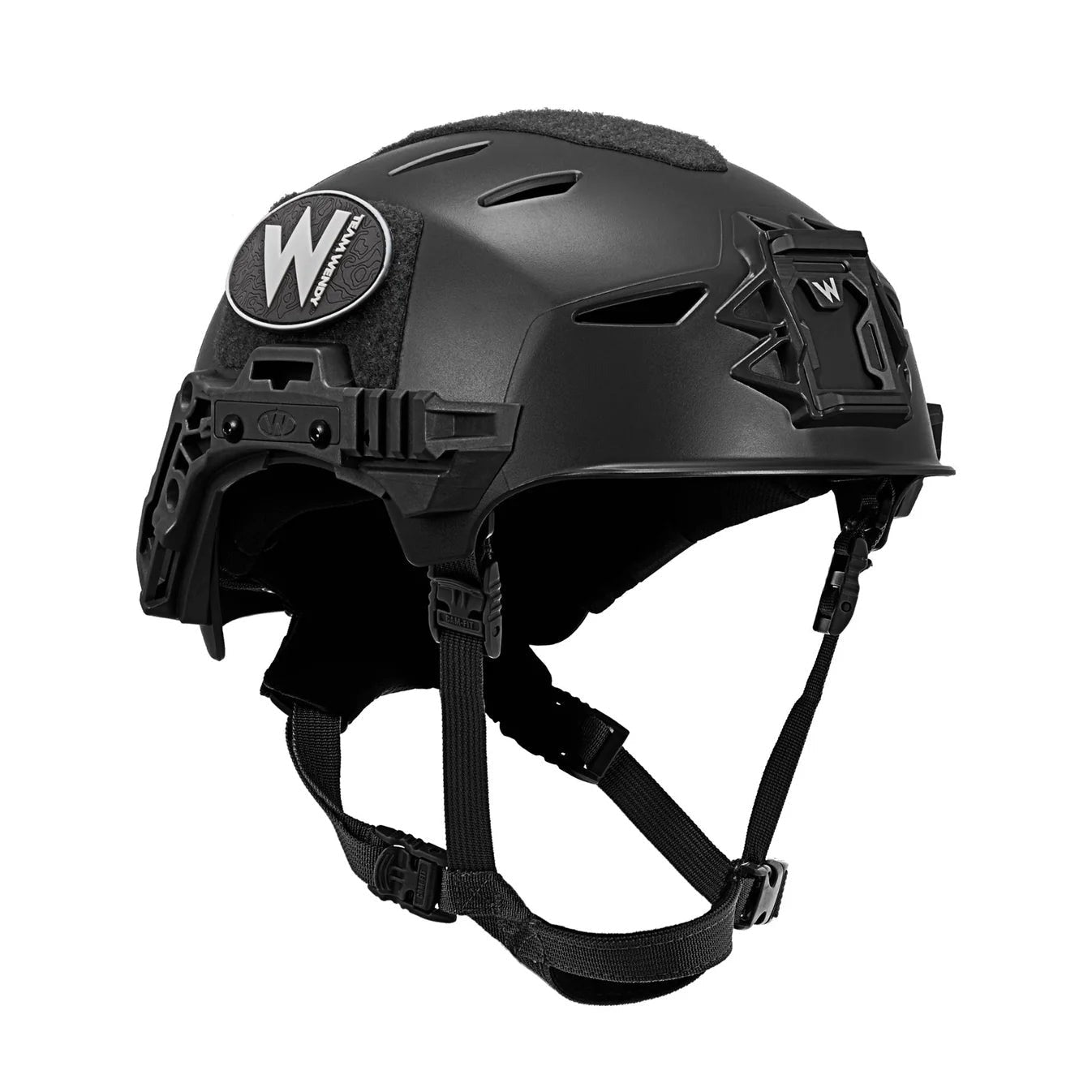

TEAM WENDY® EXFIL® RAIL 3.0 LTP BUMP HELMET (Color)

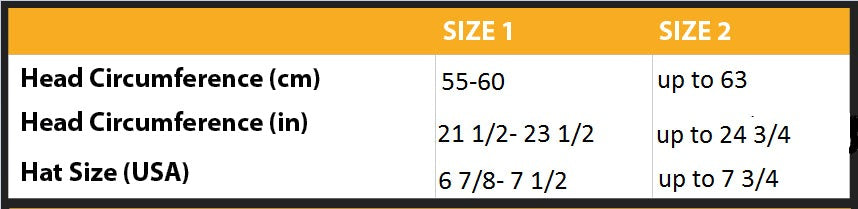

TEAM WENDY® EXFIL® RAIL 3.0 LTP BUMP HELMET (Size)

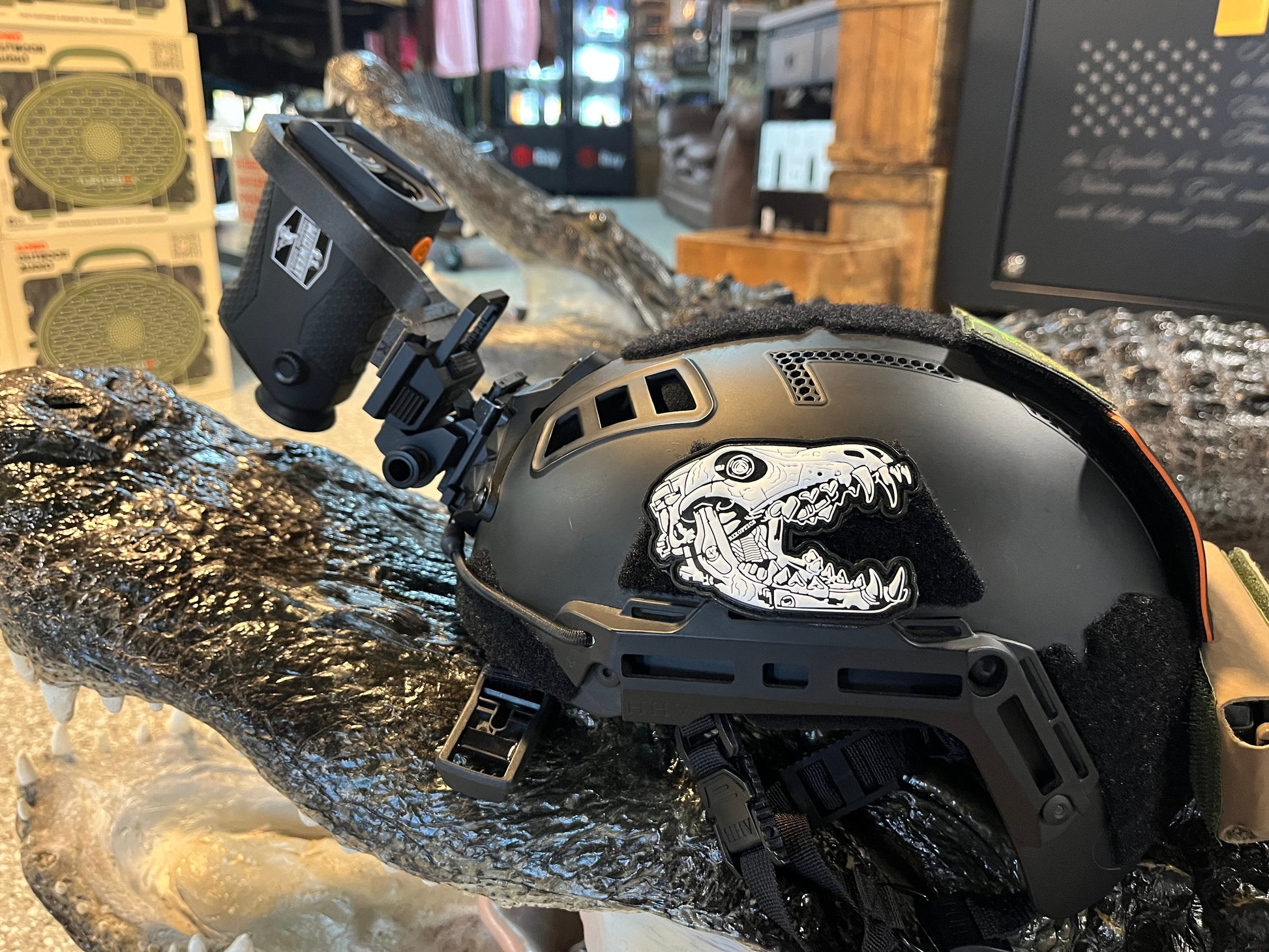

Complete Thermal Helmet Setup – Includes your choice of helmet (color & size), a RIX K3 Thermal Monocular (see specs below), G24 mount & K2/K3 helmet mount (left eye & right eye variants).

  • Rix K3 (384) - $899.99
  • Rix Helmet Mount - $84.99
  • Team Wendy Helmet - $449.99
  • G24 Mount - $169.99

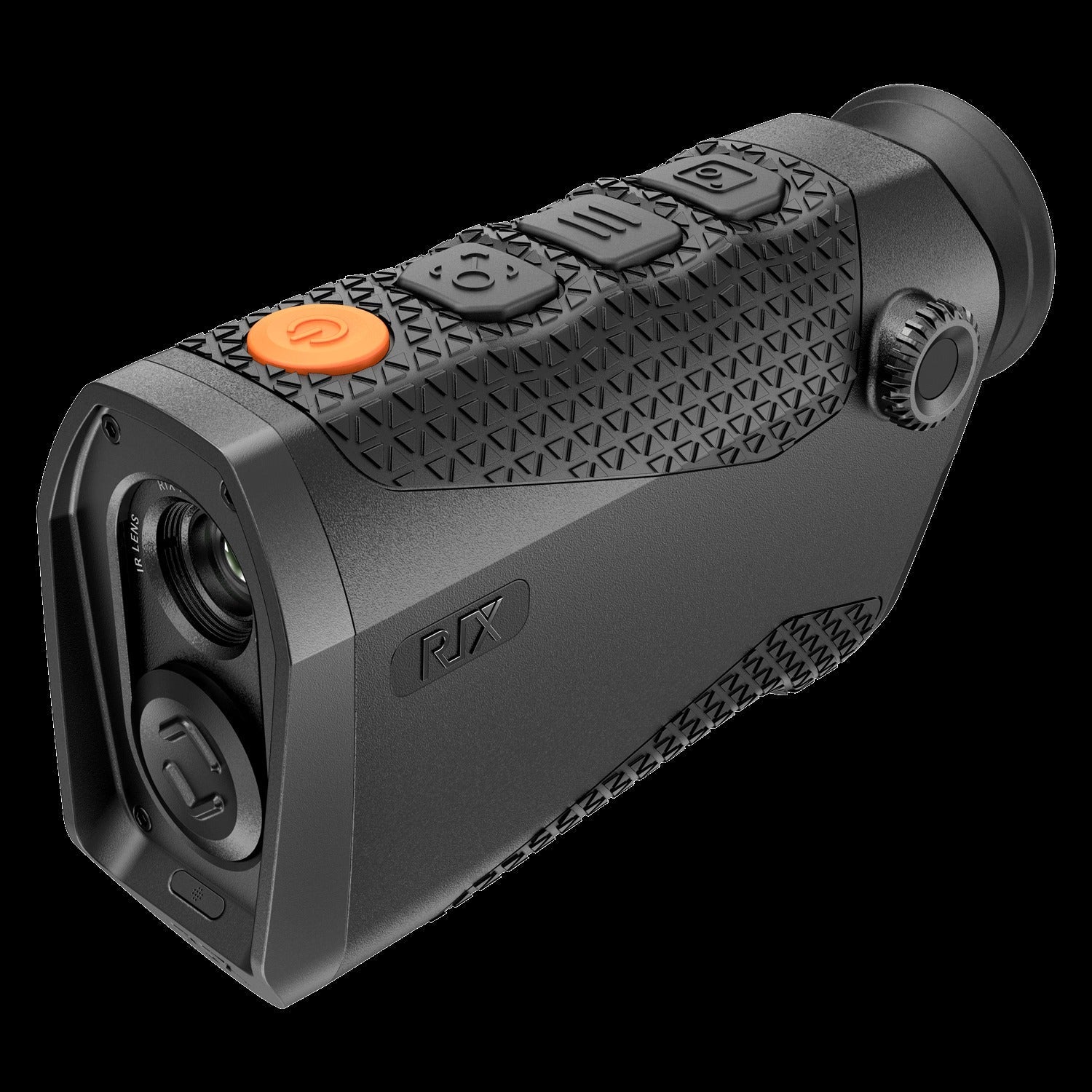

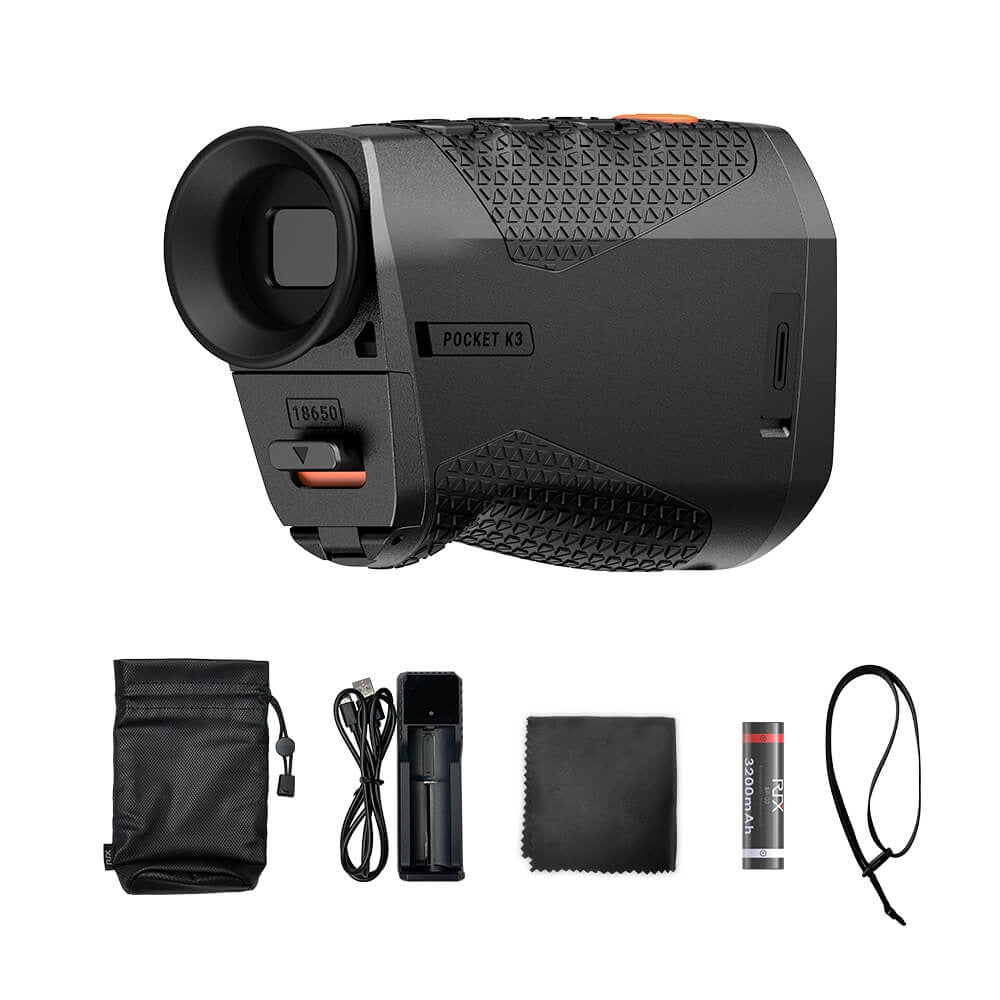

POCKET K3 Thermal Imaging Monoculars

Sensor Resolution: 384×288
Objective Lens: 15mm
Field of View (H): 17.5° / 33.6yd
Operating Time: 6 hrs
Weight: 0.47lb

Model K3
Sensor Specifications Type VOX Uncooled
Resolution, pixels 384×288
Pixel Pitch, µm 12
NETD, mK <25
Frame Rate, Hz 50

Optical Specifications Objective Lens, mm 15
Optic Zoom, x 2
Field of View (H), degrees / yd @ 100 yd 17.5°/33.6yd
Digital Zoom, x 1x/2x/4x
Eye Relief, mm 13.5
Diopter Adjustment, D -7 to +2
Detection Range, m/yd 780/853

Display Specifications Type OLED
Resolution, pixels 800×600

Wi-Fi Wireless Protocol Wi-Fi
Frequency, GHz 2.4

Video Recorder Video / Photo Resolution, pixels 800×600
Video / Photo Format .mp4 / .jpg
Built-in Memory, GB 8

Physical Specifications Degree of Protection, IP code IP67
Operating Temperature Range, °F -4  to +122
Dimensions, inch 4.9×1.8×2.9
Weight, lb 0.47

Connections and Compatibilities Battery Type 18650
Capacity, mAh 3200
Operating Time on Battery Pack (at t=72°F), h 6
External Power Supply, V 5V(Type-C USB)
